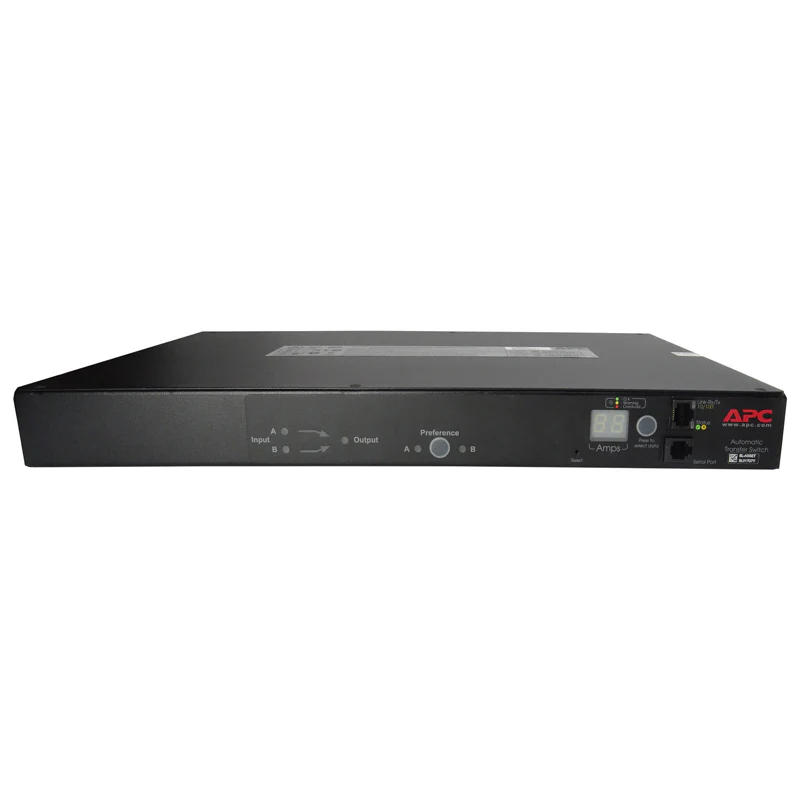

Rack ATS, 20A/208V, 16A/230V, C20 IN, (8)C13(1) C19 OUT

Output

• Nominal Output Voltage

  230V

• Overload Protection

  No

• Maximum Total Current Draw

  16

• Output Connections
  (1) IEC 320 C19 (Battery Backup)

  (8) IEC 320 C13 (Battery Backup)

Input

• Nominal Input Voltage

  200V , 208V , 230V

• Input frequency

  47 – 63 Hz

• Input Connections

  IEC-320 C20

• Maximum Input Current

  20 A

• Maximum Line Current

  20 A

Physical

• Maximum Height

  44 , 4.4 CM

• Maximum Width

  432 , 43.2 CM

• Maximum Depth

  229 , 22.9 CM

• Rack Height

  1 U

• Net Weight

  3.93 KG

• Shipping weight

  5.7 KG

• Shipping Height

  114 , 11.4 CM

• Shipping Width

  600 , 60.0 CM

• Shipping Depth

  349 , 34.9 CM

Environmental

• Operating Environment

  -5 – 45 °C

• Operating Relative Humidity

  5 – 95 %

• Operating Elevation

  0-3000 meters

• Storage Temperature

  -25 – 65 °C

• Storage Relative Humidity

  5 – 95 %

• Storage Elevation

  0-15000 meters

Conformance

• Approvals

  cUL Listed, CE, EN 55022 Class A, FCC Part 15 Class A, UL Listed

• Standard warranty

  2 years repair or replace
